为轮廓创建可倾斜的边界框和椭圆

目标

在这个教程中你将学习到如何:

• 使用OpenCV函数 minAreaRect
• 使用OpenCV函数 fitEllipse

原理

例程

例程的代码在下面显示. 你也可以从 这里 下载

#include "opencv2/highgui/highgui.hpp"
#include "opencv2/imgproc/imgproc.hpp"
#include <iostream>
#include <stdio.h>
#include <stdlib.h>

using namespace cv;
using namespace std;

Mat src; Mat src_gray;
int thresh = 100;
int max_thresh = 255;
RNG rng(12345);

/// Function header
void thresh_callback(int, void* );

/** @function main */
int main( int argc, char** argv )
{
  /// 加载源图像
  src = imread( argv[1], 1 );

  /// 转为灰度图并模糊化
  cvtColor( src, src_gray, CV_BGR2GRAY );
  blur( src_gray, src_gray, Size(3,3) );

  /// 创建窗体
  char* source_window = "Source";
  namedWindow( source_window, CV_WINDOW_AUTOSIZE );
  imshow( source_window, src );

  createTrackbar( " Threshold:", "Source", &thresh, max_thresh, thresh_callback );
  thresh_callback( 0, 0 );

  waitKey(0);
  return(0);
}

/** @function thresh_callback */
void thresh_callback(int, void* )
{
  Mat threshold_output;
  vector<vector<Point> > contours;
  vector<Vec4i> hierarchy;

  /// 阈值化检测边界
  threshold( src_gray, threshold_output, thresh, 255, THRESH_BINARY );
  /// 寻找轮廓
  findContours( threshold_output, contours, hierarchy, CV_RETR_TREE, CV_CHAIN_APPROX_SIMPLE, Point(0, 0) );

  /// 对每个找到的轮廓创建可倾斜的边界框和椭圆
  vector<RotatedRect> minRect( contours.size() );
  vector<RotatedRect> minEllipse( contours.size() );

  for( int i = 0; i < contours.size(); i++ )
     { minRect[i] = minAreaRect( Mat(contours[i]) );
       if( contours[i].size() > 5 )
         { minEllipse[i] = fitEllipse( Mat(contours[i]) ); }
     }

  /// 绘出轮廓及其可倾斜的边界框和边界椭圆
  Mat drawing = Mat::zeros( threshold_output.size(), CV_8UC3 );
  for( int i = 0; i< contours.size(); i++ )
     {
       Scalar color = Scalar( rng.uniform(0, 255), rng.uniform(0,255), rng.uniform(0,255) );
       // contour
       drawContours( drawing, contours, i, color, 1, 8, vector<Vec4i>(), 0, Point() );
       // ellipse
       ellipse( drawing, minEllipse[i], color, 2, 8 );
       // rotated rectangle
       Point2f rect_points[4]; minRect[i].points( rect_points );
       for( int j = 0; j < 4; j++ )
          line( drawing, rect_points[j], rect_points[(j+1)%4], color, 1, 8 );
     }

  /// 结果在窗体中显示
  namedWindow( "Contours", CV_WINDOW_AUTOSIZE );
  imshow( "Contours", drawing );
}

说明

结果

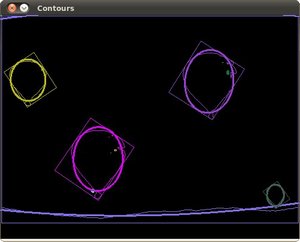

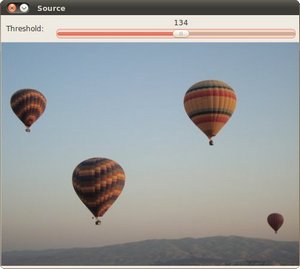

1. 结果如下图:

翻译者

zhlifly@ OpenCV中文网站 <zhlifly@gmail.com>
