Adding a Trackbar to our applications!

• In the previous tutorials (about linear blending and the brightness and contrast adjustments) you might have noted that we needed to give some input to our programs, such as

  System Message: WARNING/2 (\alpha)

  latex exited with error: [stderr] [stdout] This is pdfTeX, Version 3.1415926-1.40.10 (TeX Live 2009/Debian) entering extended mode (./math.tex LaTeX2e <2009/09/24> Babel <v3.8l> and hyphenation patterns for english, usenglishmax, dumylang, noh yphenation, loaded. (/usr/share/texmf-texlive/tex/latex/base/article.cls Document Class: article 2007/10/19 v1.4h Standard LaTeX document class (/usr/share/texmf-texlive/tex/latex/base/size12.clo)) (/usr/share/texmf-texlive/tex/latex/base/inputenc.sty (/usr/share/texmf-texlive/tex/latex/ucs/utf8x.def)) (/usr/share/texmf-texlive/tex/latex/ucs/ucs.sty (/usr/share/texmf-texlive/tex/latex/ucs/data/uni-global.def)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsmath.sty For additional information on amsmath, use the `?’ option. (/usr/share/texmf-texlive/tex/latex/amsmath/amstext.sty (/usr/share/texmf-texlive/tex/latex/amsmath/amsgen.sty)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsbsy.sty) (/usr/share/texmf-texlive/tex/latex/amsmath/amsopn.sty)) (/usr/share/texmf-texlive/tex/latex/amscls/amsthm.sty) (/usr/share/texmf-texlive/tex/latex/amsfonts/amssymb.sty (/usr/share/texmf-texlive/tex/latex/amsfonts/amsfonts.sty)) (/usr/share/texmf-texlive/tex/latex/tools/bm.sty) (/usr/share/texmf-texlive/tex/latex/euler/euler.sty Package: `euler’ v2.5 <1995/03/05> (FJ and FMi) ) (/usr/share/texmf-texlive/tex/latex/graphics/color.sty (/etc/texmf/tex/latex/config/color.cfg) (/usr/share/texmf-texlive/tex/latex/graphics/dvips.def) (/usr/share/texmf-texlive/tex/latex/graphics/dvipsnam.def)) ! LaTeX Error: File `bbm.sty’ not found. Type X to quit or <RETURN> to proceed, or enter new name. (Default extension: sty) Enter file name: ! Emergency stop. <read *> l.11 ...ackage{amsmath}\usepackage{bbm}\usepackage {colortbl}^^M No pages of output. Transcript written on math.log.

  and

  System Message: WARNING/2 (beta)

  latex exited with error: [stderr] [stdout] This is pdfTeX, Version 3.1415926-1.40.10 (TeX Live 2009/Debian) entering extended mode (./math.tex LaTeX2e <2009/09/24> Babel <v3.8l> and hyphenation patterns for english, usenglishmax, dumylang, noh yphenation, loaded. (/usr/share/texmf-texlive/tex/latex/base/article.cls Document Class: article 2007/10/19 v1.4h Standard LaTeX document class (/usr/share/texmf-texlive/tex/latex/base/size12.clo)) (/usr/share/texmf-texlive/tex/latex/base/inputenc.sty (/usr/share/texmf-texlive/tex/latex/ucs/utf8x.def)) (/usr/share/texmf-texlive/tex/latex/ucs/ucs.sty (/usr/share/texmf-texlive/tex/latex/ucs/data/uni-global.def)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsmath.sty For additional information on amsmath, use the `?’ option. (/usr/share/texmf-texlive/tex/latex/amsmath/amstext.sty (/usr/share/texmf-texlive/tex/latex/amsmath/amsgen.sty)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsbsy.sty) (/usr/share/texmf-texlive/tex/latex/amsmath/amsopn.sty)) (/usr/share/texmf-texlive/tex/latex/amscls/amsthm.sty) (/usr/share/texmf-texlive/tex/latex/amsfonts/amssymb.sty (/usr/share/texmf-texlive/tex/latex/amsfonts/amsfonts.sty)) (/usr/share/texmf-texlive/tex/latex/tools/bm.sty) (/usr/share/texmf-texlive/tex/latex/euler/euler.sty Package: `euler’ v2.5 <1995/03/05> (FJ and FMi) ) (/usr/share/texmf-texlive/tex/latex/graphics/color.sty (/etc/texmf/tex/latex/config/color.cfg) (/usr/share/texmf-texlive/tex/latex/graphics/dvips.def) (/usr/share/texmf-texlive/tex/latex/graphics/dvipsnam.def)) ! LaTeX Error: File `bbm.sty’ not found. Type X to quit or <RETURN> to proceed, or enter new name. (Default extension: sty) Enter file name: ! Emergency stop. <read *> l.11 ...ackage{amsmath}\usepackage{bbm}\usepackage {colortbl}^^M No pages of output. Transcript written on math.log.

  . We accomplished that by entering this data using the Terminal

• Well, it is time to use some fancy GUI tools. OpenCV provides some GUI utilities (highgui.h) for you. An example of this is a Trackbar



• In this tutorial we will just modify our two previous programs so that they get the input information from the trackbar.

Goals

In this tutorial you will learn how to:

• Add a Trackbar in an OpenCV window by using createTrackbar

Code

Let’s modify the program made in the tutorial Adding (blending) two images using OpenCV. We will let the user enter the

System Message: WARNING/2 (\alpha)

latex exited with error: [stderr] [stdout] This is pdfTeX, Version 3.1415926-1.40.10 (TeX Live 2009/Debian) entering extended mode (./math.tex LaTeX2e <2009/09/24> Babel <v3.8l> and hyphenation patterns for english, usenglishmax, dumylang, noh yphenation, loaded. (/usr/share/texmf-texlive/tex/latex/base/article.cls Document Class: article 2007/10/19 v1.4h Standard LaTeX document class (/usr/share/texmf-texlive/tex/latex/base/size12.clo)) (/usr/share/texmf-texlive/tex/latex/base/inputenc.sty (/usr/share/texmf-texlive/tex/latex/ucs/utf8x.def)) (/usr/share/texmf-texlive/tex/latex/ucs/ucs.sty (/usr/share/texmf-texlive/tex/latex/ucs/data/uni-global.def)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsmath.sty For additional information on amsmath, use the `?’ option. (/usr/share/texmf-texlive/tex/latex/amsmath/amstext.sty (/usr/share/texmf-texlive/tex/latex/amsmath/amsgen.sty)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsbsy.sty) (/usr/share/texmf-texlive/tex/latex/amsmath/amsopn.sty)) (/usr/share/texmf-texlive/tex/latex/amscls/amsthm.sty) (/usr/share/texmf-texlive/tex/latex/amsfonts/amssymb.sty (/usr/share/texmf-texlive/tex/latex/amsfonts/amsfonts.sty)) (/usr/share/texmf-texlive/tex/latex/tools/bm.sty) (/usr/share/texmf-texlive/tex/latex/euler/euler.sty Package: `euler’ v2.5 <1995/03/05> (FJ and FMi) ) (/usr/share/texmf-texlive/tex/latex/graphics/color.sty (/etc/texmf/tex/latex/config/color.cfg) (/usr/share/texmf-texlive/tex/latex/graphics/dvips.def) (/usr/share/texmf-texlive/tex/latex/graphics/dvipsnam.def)) ! LaTeX Error: File `bbm.sty’ not found. Type X to quit or <RETURN> to proceed, or enter new name. (Default extension: sty) Enter file name: ! Emergency stop. <read *> l.11 ...ackage{amsmath}\usepackage{bbm}\usepackage {colortbl}^^M No pages of output. Transcript written on math.log.

value by using the Trackbar.

#include <cv.h>
#include <highgui.h>

using namespace cv;

/// Global Variables
const int alpha_slider_max = 100;
int alpha_slider;
double alpha;
double beta;

/// Matrices to store images
Mat src1;
Mat src2;
Mat dst;

/**
 * @function on_trackbar
 * @brief Callback for trackbar
 */
void on_trackbar( int, void* )
{
 alpha = (double) alpha_slider/alpha_slider_max ;
 beta = ( 1.0 - alpha );

 addWeighted( src1, alpha, src2, beta, 0.0, dst);

 imshow( "Linear Blend", dst );
}

int main( int argc, char** argv )
{
 /// Read image ( same size, same type )
 src1 = imread("../../images/LinuxLogo.jpg");
 src2 = imread("../../images/WindowsLogo.jpg");

 if( !src1.data ) { printf("Error loading src1 \n"); return -1; }
 if( !src2.data ) { printf("Error loading src2 \n"); return -1; }

 /// Initialize values
 alpha_slider = 0;

 /// Create Windows
 namedWindow("Linear Blend", 1);

 /// Create Trackbars
 char TrackbarName[50];
 sprintf( TrackbarName, "Alpha x %d", alpha_slider_max );

 createTrackbar( TrackbarName, "Linear Blend", &alpha_slider, alpha_slider_max, on_trackbar );

 /// Show some stuff
 on_trackbar( alpha_slider, 0 );

 /// Wait until user press some key
 waitKey(0);
 return 0;
}

Explanation

We only analyze the code that is related to Trackbar:

1. First, we load 02 images, which are going to be blended.

   src1 = imread("../../images/LinuxLogo.jpg");
   src2 = imread("../../images/WindowsLogo.jpg");


2. To create a trackbar, first we have to create the window in which it is going to be located. So:

   namedWindow("Linear Blend", 1);


3. Now we can create the Trackbar:

   createTrackbar( TrackbarName, "Linear Blend", &alpha_slider, alpha_slider_max, on_trackbar );


   Note the following:

   • Our Trackbar has a label TrackbarName
   • The Trackbar is located in the window named “Linear Blend”
   • The Trackbar values will be in the range from

     System Message: WARNING/2 (0)

     latex exited with error: [stderr] [stdout] This is pdfTeX, Version 3.1415926-1.40.10 (TeX Live 2009/Debian) entering extended mode (./math.tex LaTeX2e <2009/09/24> Babel <v3.8l> and hyphenation patterns for english, usenglishmax, dumylang, noh yphenation, loaded. (/usr/share/texmf-texlive/tex/latex/base/article.cls Document Class: article 2007/10/19 v1.4h Standard LaTeX document class (/usr/share/texmf-texlive/tex/latex/base/size12.clo)) (/usr/share/texmf-texlive/tex/latex/base/inputenc.sty (/usr/share/texmf-texlive/tex/latex/ucs/utf8x.def)) (/usr/share/texmf-texlive/tex/latex/ucs/ucs.sty (/usr/share/texmf-texlive/tex/latex/ucs/data/uni-global.def)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsmath.sty For additional information on amsmath, use the `?’ option. (/usr/share/texmf-texlive/tex/latex/amsmath/amstext.sty (/usr/share/texmf-texlive/tex/latex/amsmath/amsgen.sty)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsbsy.sty) (/usr/share/texmf-texlive/tex/latex/amsmath/amsopn.sty)) (/usr/share/texmf-texlive/tex/latex/amscls/amsthm.sty) (/usr/share/texmf-texlive/tex/latex/amsfonts/amssymb.sty (/usr/share/texmf-texlive/tex/latex/amsfonts/amsfonts.sty)) (/usr/share/texmf-texlive/tex/latex/tools/bm.sty) (/usr/share/texmf-texlive/tex/latex/euler/euler.sty Package: `euler’ v2.5 <1995/03/05> (FJ and FMi) ) (/usr/share/texmf-texlive/tex/latex/graphics/color.sty (/etc/texmf/tex/latex/config/color.cfg) (/usr/share/texmf-texlive/tex/latex/graphics/dvips.def) (/usr/share/texmf-texlive/tex/latex/graphics/dvipsnam.def)) ! LaTeX Error: File `bbm.sty’ not found. Type X to quit or <RETURN> to proceed, or enter new name. (Default extension: sty) Enter file name: ! Emergency stop. <read *> l.11 ...ackage{amsmath}\usepackage{bbm}\usepackage {colortbl}^^M No pages of output. Transcript written on math.log.
     to alpha_slider_max (the minimum limit is always zero).
   • The numerical value of Trackbar is stored in alpha_slider
   • Whenever the user moves the Trackbar, the callback function on_trackbar is called

4. Finally, we have to define the callback function on_trackbar

   void on_trackbar( int, void* )
   {
    alpha = (double) alpha_slider/alpha_slider_max ;
    beta = ( 1.0 - alpha );

    addWeighted( src1, alpha, src2, beta, 0.0, dst);

    imshow( "Linear Blend", dst );
   }


   Note that:

   • We use the value of alpha_slider (integer) to get a double value for alpha.
   • alpha_slider is updated each time the trackbar is displaced by the user.
   • We define src1, src2, dist, alpha, alpha_slider and beta as global variables, so they can be used everywhere.

Result

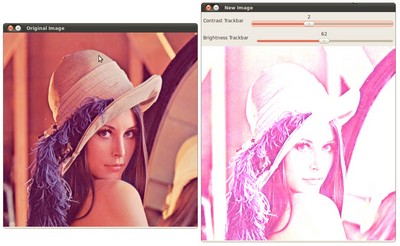

• Our program produces the following output:



• As a manner of practice, you can also add 02 trackbars for the program made in Changing the contrast and brightness of an image!. One trackbar to set

  System Message: WARNING/2 (\alpha)

  latex exited with error: [stderr] [stdout] This is pdfTeX, Version 3.1415926-1.40.10 (TeX Live 2009/Debian) entering extended mode (./math.tex LaTeX2e <2009/09/24> Babel <v3.8l> and hyphenation patterns for english, usenglishmax, dumylang, noh yphenation, loaded. (/usr/share/texmf-texlive/tex/latex/base/article.cls Document Class: article 2007/10/19 v1.4h Standard LaTeX document class (/usr/share/texmf-texlive/tex/latex/base/size12.clo)) (/usr/share/texmf-texlive/tex/latex/base/inputenc.sty (/usr/share/texmf-texlive/tex/latex/ucs/utf8x.def)) (/usr/share/texmf-texlive/tex/latex/ucs/ucs.sty (/usr/share/texmf-texlive/tex/latex/ucs/data/uni-global.def)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsmath.sty For additional information on amsmath, use the `?’ option. (/usr/share/texmf-texlive/tex/latex/amsmath/amstext.sty (/usr/share/texmf-texlive/tex/latex/amsmath/amsgen.sty)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsbsy.sty) (/usr/share/texmf-texlive/tex/latex/amsmath/amsopn.sty)) (/usr/share/texmf-texlive/tex/latex/amscls/amsthm.sty) (/usr/share/texmf-texlive/tex/latex/amsfonts/amssymb.sty (/usr/share/texmf-texlive/tex/latex/amsfonts/amsfonts.sty)) (/usr/share/texmf-texlive/tex/latex/tools/bm.sty) (/usr/share/texmf-texlive/tex/latex/euler/euler.sty Package: `euler’ v2.5 <1995/03/05> (FJ and FMi) ) (/usr/share/texmf-texlive/tex/latex/graphics/color.sty (/etc/texmf/tex/latex/config/color.cfg) (/usr/share/texmf-texlive/tex/latex/graphics/dvips.def) (/usr/share/texmf-texlive/tex/latex/graphics/dvipsnam.def)) ! LaTeX Error: File `bbm.sty’ not found. Type X to quit or <RETURN> to proceed, or enter new name. (Default extension: sty) Enter file name: ! Emergency stop. <read *> l.11 ...ackage{amsmath}\usepackage{bbm}\usepackage {colortbl}^^M No pages of output. Transcript written on math.log.

  and another for

  System Message: WARNING/2 (\beta)

  latex exited with error: [stderr] [stdout] This is pdfTeX, Version 3.1415926-1.40.10 (TeX Live 2009/Debian) entering extended mode (./math.tex LaTeX2e <2009/09/24> Babel <v3.8l> and hyphenation patterns for english, usenglishmax, dumylang, noh yphenation, loaded. (/usr/share/texmf-texlive/tex/latex/base/article.cls Document Class: article 2007/10/19 v1.4h Standard LaTeX document class (/usr/share/texmf-texlive/tex/latex/base/size12.clo)) (/usr/share/texmf-texlive/tex/latex/base/inputenc.sty (/usr/share/texmf-texlive/tex/latex/ucs/utf8x.def)) (/usr/share/texmf-texlive/tex/latex/ucs/ucs.sty (/usr/share/texmf-texlive/tex/latex/ucs/data/uni-global.def)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsmath.sty For additional information on amsmath, use the `?’ option. (/usr/share/texmf-texlive/tex/latex/amsmath/amstext.sty (/usr/share/texmf-texlive/tex/latex/amsmath/amsgen.sty)) (/usr/share/texmf-texlive/tex/latex/amsmath/amsbsy.sty) (/usr/share/texmf-texlive/tex/latex/amsmath/amsopn.sty)) (/usr/share/texmf-texlive/tex/latex/amscls/amsthm.sty) (/usr/share/texmf-texlive/tex/latex/amsfonts/amssymb.sty (/usr/share/texmf-texlive/tex/latex/amsfonts/amsfonts.sty)) (/usr/share/texmf-texlive/tex/latex/tools/bm.sty) (/usr/share/texmf-texlive/tex/latex/euler/euler.sty Package: `euler’ v2.5 <1995/03/05> (FJ and FMi) ) (/usr/share/texmf-texlive/tex/latex/graphics/color.sty (/etc/texmf/tex/latex/config/color.cfg) (/usr/share/texmf-texlive/tex/latex/graphics/dvips.def) (/usr/share/texmf-texlive/tex/latex/graphics/dvipsnam.def)) ! LaTeX Error: File `bbm.sty’ not found. Type X to quit or <RETURN> to proceed, or enter new name. (Default extension: sty) Enter file name: ! Emergency stop. <read *> l.11 ...ackage{amsmath}\usepackage{bbm}\usepackage {colortbl}^^M No pages of output. Transcript written on math.log.

  . The output might look like:
